Products IRON-ATS-46

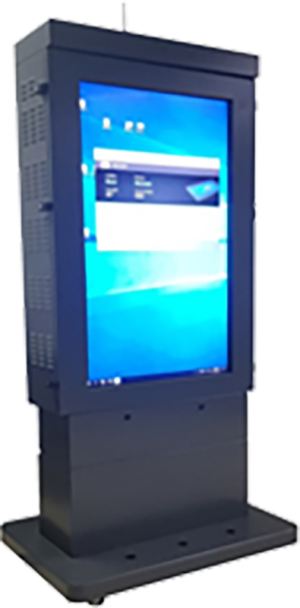

◾ 46 inch 4Bar Touch Sensor

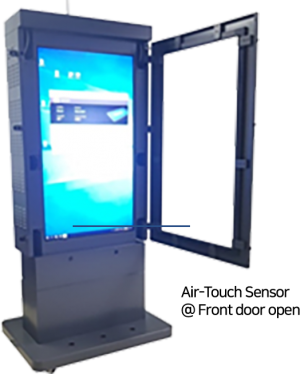

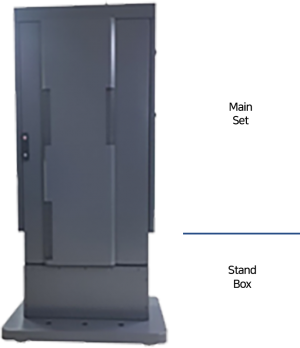

◾ Rear open

Key Features
  • 4-BAR Type touch sensor

    Touch sensor located Up and Down side, Left and Right side.

  • Un-contact touch function

    IRON-ATS series support Safetouch technology enables users to recognize touch Interface without physically contacting the glass. The non-contact glass interface can protect users from common touchscreen issues (germ infection, dirt), which require contact with the glass surface.

  • Optical bonding

    IRON-ATS series have an optical bonding structure that bonds thick tempered glass to the LCD surface.  It protects against vandalism, eliminates air gaps, moisture buildup, and heat buildup, and provides increased visibility, durability, and heat transfer, improving the air-touch experience.

  • Easy Maintenance

    We designed RON-ATS series with the basic concept of the convenience of maintenance, and the users can easily and quickly replace most units (controller, LCD, fan, cooler unit, touch sensor, etc.) at the operational sites and manage it by the central control unit. The system also can support remote alarm monitoring and control functions by buyer requests.

Display size 46 inch
Brightness 1500 nit ~ 2500 nit
Dimension (mm) 800(W) * 1466(H) * 300(D) @46inch Main Set
Weight 85kg, 95kg @Main Set
Operating Temp. -35℃ ~ +50℃ (Build-in heater module)
-5℃ ~ +50℃ (without heater module)
Ambient Humidity 10% ~ 90%
Thermal Cooling Control Dual Cooling Structure
∙ Display surface air-cooler (Front)
∙ Powerful air-exchange cooler(Rear 400W)
Direct Sunlight (heat) Acceptance Yes, with solar load up to 1,200W/m2
@Display surface and SafeTouch Sensor
Input Power AC 100V ~ 240V @50/60Hz
External Connector Port AC Input 1 Port, Empty hall 1 Port
@Waterproof connector
Auto Time Set Awake / Operate / Sleep Mode
Power Consumption Operating Mode : Typ. 300W / Max 400W Sleep mode : <5W
Housing Structure
(Enclosure &Touch)
1.6mm thickness galvanized steel cover with powder coating
Protection Grade IP65
Management Support NMS
(Network Management System)
Warranty 1 year( Extendible to 5 years)
