Outdoor Interactive Solution

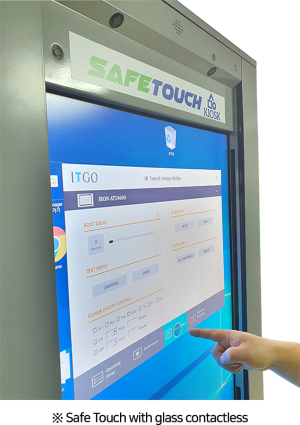

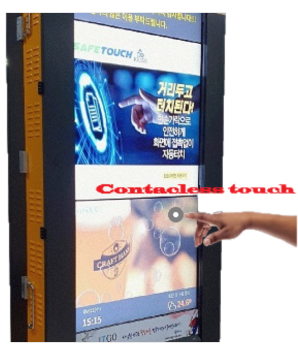

IRON SafeTouch series support Safetouch technology enables users to recognize touch Interface without physically contacting the glass. The non-contact glass interface can protect users from common touchscreen issues (germ infection, dirt), which require contact with the glass surface.

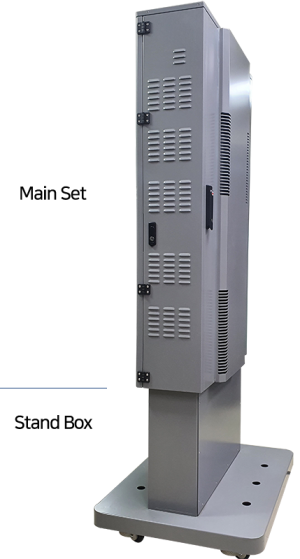

We designed IRON SafeTouch series with the basic concept of the convenience of maintenance, and the users can easily and quickly replace most units (controller, LCD, fan, cooler unit, touch sensor, etc.) at the operational sites and manage it by the central control unit. The system also can support remote alarm
Multi touch function with 2 Touch sensor bar.

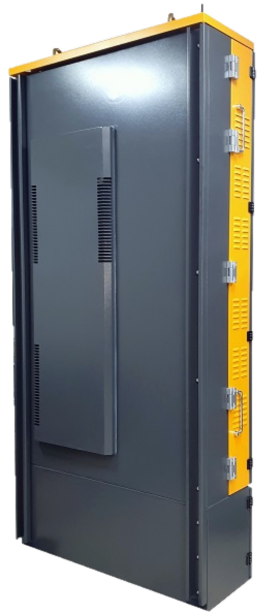

IRON SafeTouch(O) has a dual cooling structure, and the heat exchanger cooer is applied inside the enclosure to increase the life of the cooling system. The cooling efficiency of the system is increased at a low cost by adding a front cooler separately. In particular, “Front Cooler” removes the inconvenience of users by blocking the heat transfer that high heat generated from a high-brightness (1,500 nit or more) panel display screen is transferred to a nearby touch user for touch use, which is a differentiated technology and protected by our patent.
The touch display installed outdoors must undergo severe weather changes (four seasons) and be installed and operated remotely from the management site. IRON-SafeTouch(O) supports the “auto operation mode” function to provide convenience for remote equipment operation and reduce the failure rate for daily power on/off.
- Remote automatic setting of equipment operation time (power on/off)
- Operates in 3 levels of automatic mode to reduce equipment failure rate (Awake Mode ▶ Operate Mode ▶ Sleep Mode ▶ Awake Mode)
▪ After checking the operation status for each operation mode, it automatically switches to the next operation mode.
Certified as an Innovative by Porduct Public Procurement Service(Korea)
| Display size | 46 inch |
|---|---|
| Brightness | 1500 nit ~ 2500 nit |
| Dimension (mm) | 800(W)*1466(H)*300(D) @46inch Main Set |
| Weight | 85kg, 95kg @Main Set |
| Operating Temp. | -30℃ ~ +50℃ (Build-in heater module) -5℃ ~ +50℃ (without heater module) |
| Ambient Humidity | 10% ~ 90% |
| Thermal Cooling Control | Dual Cooling Structure ∙ Display surface air-cooler (Front) ∙ Powerful air-exchange cooler(Rear 400W) |
| Direct Sunlight (heat) Acceptance | Yes, with solar load up to 1,200W/m2 @Display surface and SafeTouch Sensor |
| FAN Noise | Typ. 30dBA, Max <43dBA @ front & side Typ. 45dBA, Max <57dBA @ Rear |
| Input Power | AC 100V ~ 240V @50/60Hz |
| External Connector Port | AC Input 1 Port, Empty hall 1 Port @Waterproof connector |
| Auto Time Set | Awake / Operate / Sleep Mode |
| Power Consumption | Operate Mode : Typ. 350W / Max 450W Sleep mode : < 2W |
| Housing Structure (Enclosure & Touch) | 1.6mm thickness galvanized steel cover with powder coating |
| Protection Grade | IP65 |
| Management | Support NMS (Network Management System) |
| Warranty | 1 year( Extendible to 5 years) |
