Free Space Optics Telecommunication system

FSO(Free Space Optics) system is optical telecommunication equipment for transmitting and receiving between signal of Telecommunications Network Nodes.
IF-1000, FSO system of ITGO, uses 1530nm ~ 1550nm C-band and is composed of the transmitting optical system for collimating light source, receiving optical system.

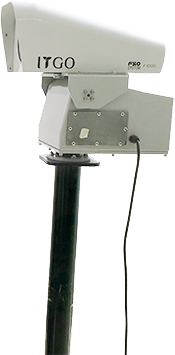

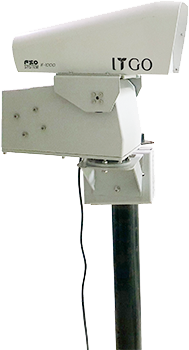

IF-1000 is the one channel Gigabit Ethernet telecommunication system and the main parts of system are composed of Optical Head unit, Control Unit, PT Unit.

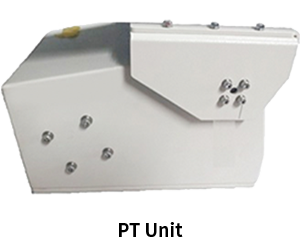

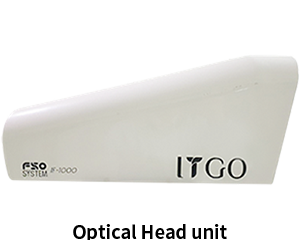

The Header unit includes lens, optical transmitting and receiving fiber, the Control unit includes control board and power, and the PT unit includes PT motor and control unit.

Type	Optical head / Control unit seperated
Topology	Master:Slave=1:1
Duplexing	Full Duplex
Data Rate	2.5Gbps Gigabit Ethernet
전송 Protocol	802.3, 802.3ab
@10db/km	900 meter
@17db/km	650 meter
@30db/km	400 meter
Wanvelength	C-Band CWDM
Out power	Over 23dBm(EDFA used)
Eye Safety Class	Class 1M
Sensitivity	Under -28dBm
Data transmission(FSO)	SFP 1 Slots
Switch or server	SFP 1 Slot
Local OAM	RJ-45, D-SUB9
AC	110/220V
Battery	Equiped
Error Correction	Reed Solomon
Control out power	optional
Connection	Cellular Modem(optional)
Protocol	SNMP, WEB
Optical Header(mm)	190 X 190 X 412
Control Unit(mm)	500 X 300 X 250
PT Unit(mm)	210 X 247 X 305
OPtical Header	3Kg
Control Unit	16.3Kg
